We manufacture and supply the following lines:

Alternator GTA41 for 830E-AC and 930E-4,

Blower XA4146/5GY19L8 for all Komatsu mining trucks,

Wheel Motor 5GDY106A4/GE0053,

Components for repairing Wheel Motor Assembly of 730E, 830E-AC, 930E-4,

Electronic Assemblies for GE control system, IGBT, Contactors, Panels, Modules, Sensors, Capacitors, etc.

PCB Cards for all Komatsu trucks, new or reman, OEM or aftermarket.

GE Number	Komatsu Number	930E-4	930E-4SE	930E-2	830E-AC
17FB104	GE0309	2	2	1	2
17FB160	GE0368/XA4228	1	1		1
17FB173	GE1209/XA4404/58D-43-00251	1	1		1
17FB174	GE1484/XA4403	2			2
17FB179	GE1502/XA4229	2			2
17FB187	58F-43-00160		2
17FB190	58F-43-00180		2
17FB127	GE0307			1
17FB147/144	GE0308			1
17FB134	GE0343			2
17FB138	GE0342			2
17FB143	GE0310			1
	GE0858 Panel	1

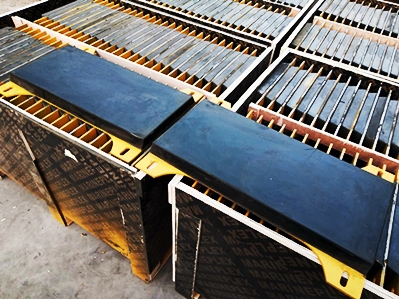

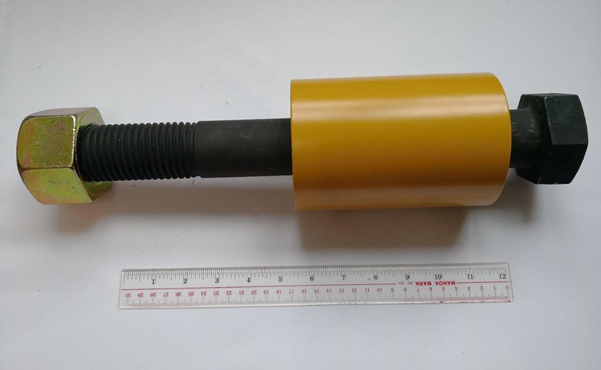

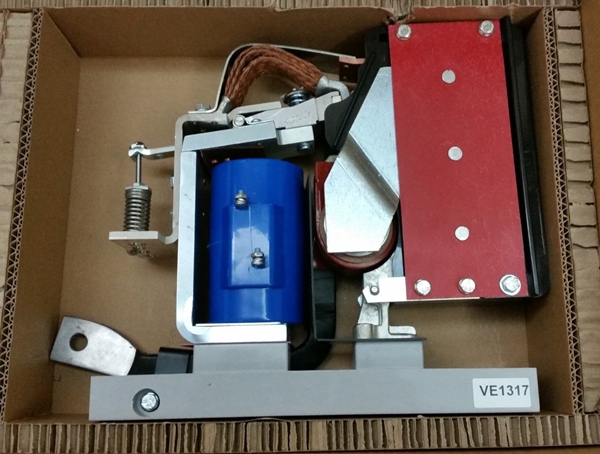

Body Pad EG8098 painted in yellow. Bolt EL5422, Nut WA0404, Spacer EL7295. Contactor VE1317

Cards for Invertex in Control Cabinet. IGBT with Drive Card. Contactor GE0647

We repair GTO, Gate Drivers and all cards for 730E, 830E, 830E-AC, 930E-4, 930E-4SE, 960E-2, 980E-5, 730E-8, 830E-5.

		Pamic Mechanical Parts

	Weight, Kg	Part Number	Description	Qty/Truck
1	0.395	AK3570	Filter, Element	1
2	0.360	AK3572	Filter, Element	1
3	0.077	BF2122	Contact	8
4	0.484	BF2123	Contact	4
5	0.484	BF2124	Contact	4
6	0.001	BF2196	O-Ring	2
7	0.100	BF4831-1	Contact	22
8	0.045	BF4906(AK3771)	Brush(DC Motor)	12
9	3.247	ED7962	Bushing	2
10	3.485	EF0745	Bushing	2
11	0.170	EF3368	Washer	140
12	17.100	EG8098	Pad,Body	8
13	1.360	EH0826	Stud	456
14	8.410	EH4367	Pin	6
15	0.220	EH4369	Washer, Ring	2
16	2.900	EH7934	Sleeve	2
17	0.900	EH7936	Spacer	2
18	48.500	EJ2846	Pin, 48.5 kg	2
19	0.394	EJ8353	Spacer	2
20	0.423	EK2600	Washer, 2"	12
21	0.110	EK2849	Seal	4
22	1.410	EK4352	Stud	114
23	6.880	EL0945	Bolt, 2",14.5" long	16
24	4.980	EL5422	Bolt, 1.75",14.5" long	16
25	7.160	EL7295	Spacer	8
26	1.850	EM5451	Stud	216
27	0.710	EM5452	Stud	140
28	0.610	EM5453	Stud	96
29	1.080	GE0068	Bolt, 12pt	70
30	0.790	GE0082	Bolt, 12pt	108
31	0.096	GE0449	Washer	390
32	0.014	GE0555	Washer	32
33	24.500	GE0647-1	Contactor	2
34	2.592	GE0696	Arc Chute	2
35	0.008	GE0887	O-Ring	2
36	0.590	GE1019	Terminal	2
37	0.480	GE1075	Contact Kit	2
38	23.500	GE1412	Bus Bar	28
39	1.550	GE1491	Bolt, 12pt	54
40	0.480	GE1836	Contact Kit	2
41	1.88	PB7001	Filter, Heater	1
42	3.050	PC1686	Bearing, Spherical	8
43	3.100	PC1687	Bearing, Spherical	4
44	0.274	TA2572	Nut	96
45	0.125	TY2149	Washer	270
46	1.300	TY2239	Retainer	8
47	1.650	TY8745(XA0153)	Switch	1
48	14.500	VE1317	Contactor	11
49	4.550	VE3909	Lining, Front Brake	4
50	10.500	VE4256	Fan	2
51	10.500	VE4257	Fan	2
52	0.033	VE7076-1	Brush	8
53	0.097	VE8444	Brush	12
54	1.010	VN3270	Bolt	96
55	1.060	VN3275	Bolt	140
56	1.850	VN9193	Bolt,1.5"	12
57	0.061	WA0366	Washer	96
58	0.093	WA0368	Washer	24
59	0.423	WA0404	Nut	12
60	0.285	WA1589	Bolt, 12pt	408
61	1.500	WA4682	Bolt	36
62	1.010	WA4817	Bolt, 12pt	156
63	0.020	WA5659	Washer	408
64	1.410	WA5660	Bolt, 12pt	128
65	0.180	WA5664	Bolt, 12pt	12
66	0.140	WB1088	Clamp	32
67	0.433	WB1134	Nut, Flange	356
68	1.080	WB1145	Bolt	6
69	0.710	WB1162	Bolt, 12pt	56
70	4.550	XA2009	Lining, Rear Brake	2
71	0.172	XA2045	Contact	3
72	0.386	XA2046	Contact	6
73	1.270	XA4256	Sensor	2
74	0.030	XA5128	Bulb	2
75	0.004	3046999R1	O Ring	2
76	2.750	58B-43-00660	Bus Bar	5
77	0.902	58B-98-10300	Bolt, 12pt	12
78	1.200	58B-98-10400	Bolt, 12pt	16
79	1.850	58B-98-10700	Bolt, 12pt	32
80	0.500	XA4288-1	Sensor	1

		Pamic Parts for GE Control System

	Komatsu Part No	GE Part Number	Description
1	VE6118/BF3781	17FM458A2	VOLTAGE MEASURE MODULE
2	AK1991	17FB100B3	XCARD 100
3	AK1993(BF5182)	17FB103B2	XCARD 103
4	AK1994(GE0309)	17FB104B2	XCARD 104
5	AK7945/XA3560	17FB140B1	XCARD 140
6	BF5184	17FB144B3	XCARD 144 w/CPU for 730E
7	BF2133	97-1069-2	SURGE SUPRESSOR
8	BF2134	41A296327AMP110	ARC CHUTE
9	GE0169	41A296302B	CAPACITOR
10	GE0170	41A296328AKP2	SENSOR, AC-DC
11	GE0177	41C666570G1	XWIREBOARD,P
12	GE0182/XA4327	41C666558G1	CDI RESISTOR
13	GE0647	41A296327ALP2	RP CONTACTOR
14	GE0696	41A296327ALP100	ARC CHUTE
15	GE0762	41A296302AYP3	CAPACITOR
16	GE0755	17FH41A1/41A328093CJP1	MAIN POWER BOX
17	GE1019	For contact kit in GE0647	Terminal
18	GE1255	17FM796A1	IGBT ASSEMBLY POSITIVE
19	GE1256	17FM797A1	IGBT ASSEMBLY NEGTIVE
20	41A296305ECP1	41A296305ECP1	IGBT MODULE
21	41A296305EDP1	41A296305EDP1	IGBT DRIVE CARD ASSEMBLY
22	41A296332BLP10	41A296332BLP10	IGBT BUS BAR POSITIVE
23	41A296332BLP11	41A296332BLP11	IGBT BUS BAR NEGATIVE
24	GE1257	41A296352CYP2	GATE POWER UNIT
25	GE1296/XA4876	41A296302CDP2/6	MAIN FILTER CAPACITOR
26	GE1298/XA4290	41A396321BSP2	IGBT FUSE 350A
27	GE1387	17FM792A2	Panel, Rectifier
28	GE1412	41A296332BLP2	BUS BAR, Vertical
29	GE1413/58B-43-00660	41A296332BLP13	BUS BAR, Capacitor
30	GE1483	41A325938G2	BACK PLATE 830/930E
31	NO PART NO.		BACK PLATE 730E
32	PB6137/PB5594	17CM55AH6A	CONTACTOR
33	VE0687	41A278053G1	BATTERY BOOST CARD
34	VE1317	17CM55AH6	CONTACTOR
35	VE3530	17AF45C2	INTERLOCK
36	VJ0846	41D752791G1	ARC CHUTE
37	VE4256	41D732534G1	FAN, For Blower 5GY19L8
38	VE4257	41D732534G2	FAN, For Blower 5GY19L8
39	VG7043	17LV66J46	RELAY 24VDC COIL
40	VJ0846	41D752791G1	ARC CHUTE
41	VS7373	41A279579G1	GATE FIRE MODULE
42	XA4228/GE0368	17FB160C1	XCARD 160
43	PB9230	41A296327AJP1	XREVERSE SWI
44	PB9229	41A296327AMP2	XCONTACTOR
45	BF2129		INTERLOCK (EATON-10-6817-
46	GE1486/58E-43-00400	F0DC1/41A325926G2	XMODULEX1
47	GE1487/58E-43-00410	F0DC2/41A325926G2	XMODULEX1
48	XA4256		Sensor, Speed
49	XA4288	41A328039EBP4	Sensor, Speed
50	TY8745	41A251348G1	Switch
51	BF4831	9960190G7	Contact
52	BF2122	3X6671	Contact
53	BF2123	3X6673	Contact
54	BF2124	3X6672	Contact
55	XA2045	3X6660	Contact
56	XA2046	3X6659	Contact
57	GE1075	41A296327ALP103	Contact, Kit
58	GE1836	41A296327ALP105	Contact, Kit
59	GE1019	2003462	Terminal
60	VE8444	84A203180P1	Brush, Carbon, Alternator
61	VE7076	41A330375P1	Brush, Carbon, Blower
62	GE1211(VE0037)	41A281726P1	Rectifier(GE1212,GE1213,GE1214)
63	BF4452		Module
64	XA3720	17FM702A1	Module VAM
65	GE0857	17FM681A1	Module VAM
66	PB9785	17FM693B3	DID ASSEMBLY
67	EK3808/SM1943		RB1
68	EK3803/SM1951		RB3
69	EK3806/SM5651		RB4
70	EK3811/SM1959		RB5
71	EK4991		RB6

Grid Resistors GE0850,GE0851,GE0852,GE1253.Blower XA4146,5GY19L8. GE1836 Silver Tungsten Carbide Kit in Stock.
